Rotating Lifting Point RLP

The RLP lifting point has been part of the Gunnebo selection for years now.

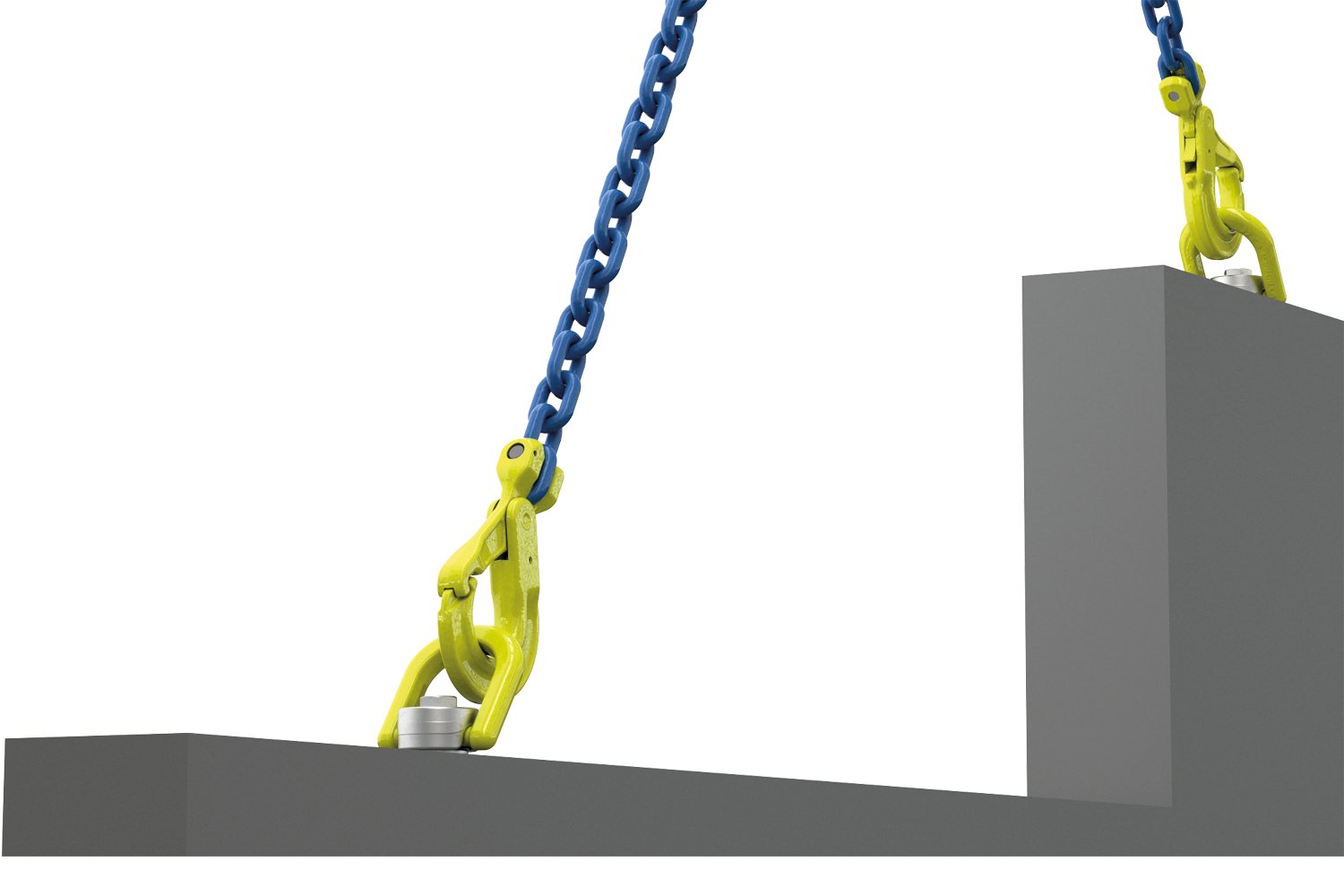

Its open D-ring structure makes the RLP lifting point exceptionally versatile. For example, it’s perfect for securing slings, master links, or hooks.

Combined with the flexibility of 360° rotation and 180° pivoting, the RLP is a true all-rounder.

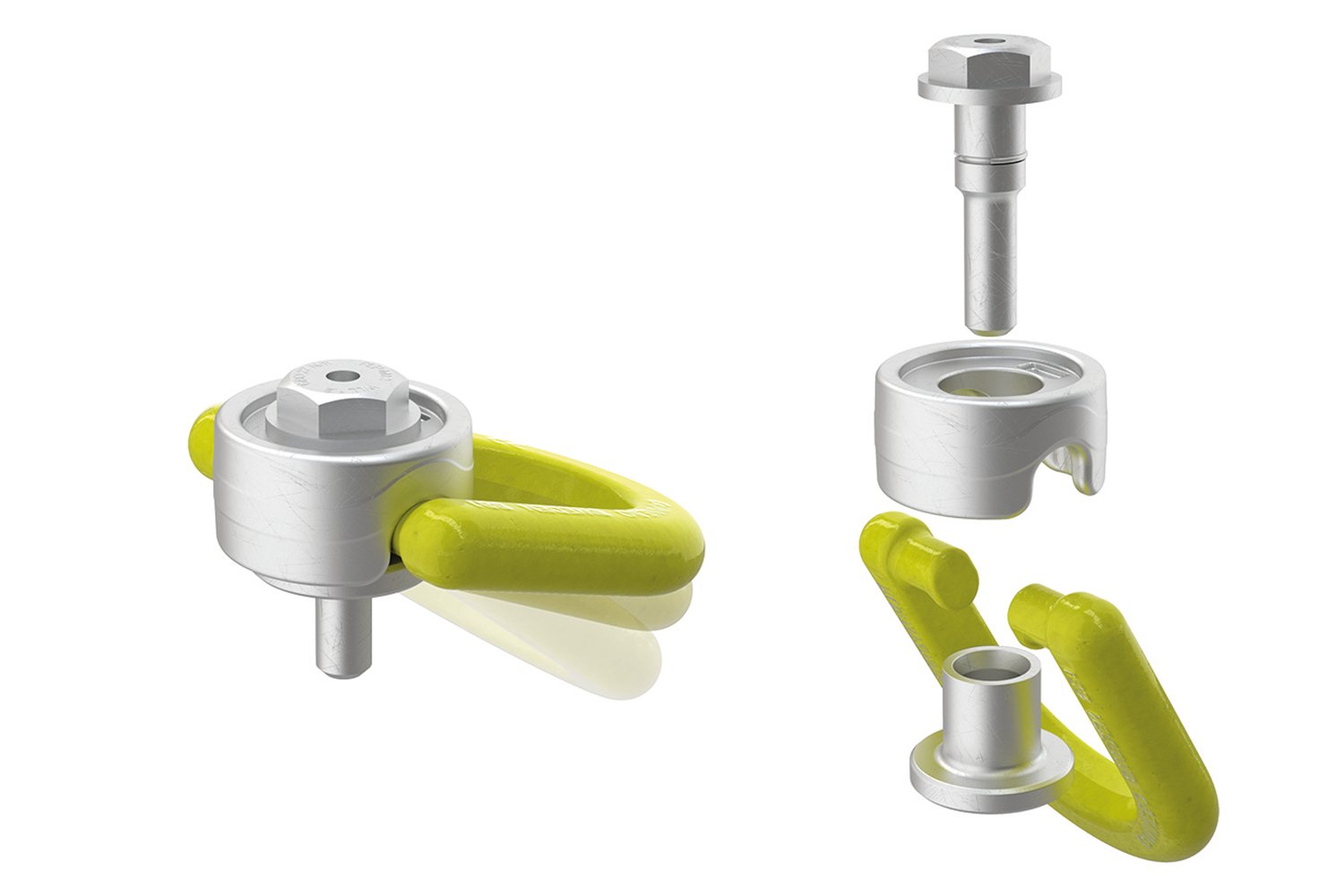

The no-tools needed RLP lifting point means it can be disassembled in no time. Simply fold the D-ring forward and push down to release.
That makes it possible to thoroughly inspect the parts or mount a longer bolt if needed.

RLP lifting point benefits:
  • Easy to assemble and disassemble.
  • The hexagonal bolt facilitates quick assembly and disassembly.
  • 360° rotation and 180° pivoting.
  • The RLP’s design doesn’t just make it flexible – it’s also strong and reliable too.
  • Spacious, open D-ring
  • The D-ring’s design makes disassembling the RLP’s individual parts a breeze. That way each part can separately be inspected effortlessly and overall safety is enhanced. Rigging hardware such as slings, master links, and hooks can also be assembled in no time.
  • The RLP lifting point is supplied with an extra-long bolt, perfectly equipping it for applications that require one.

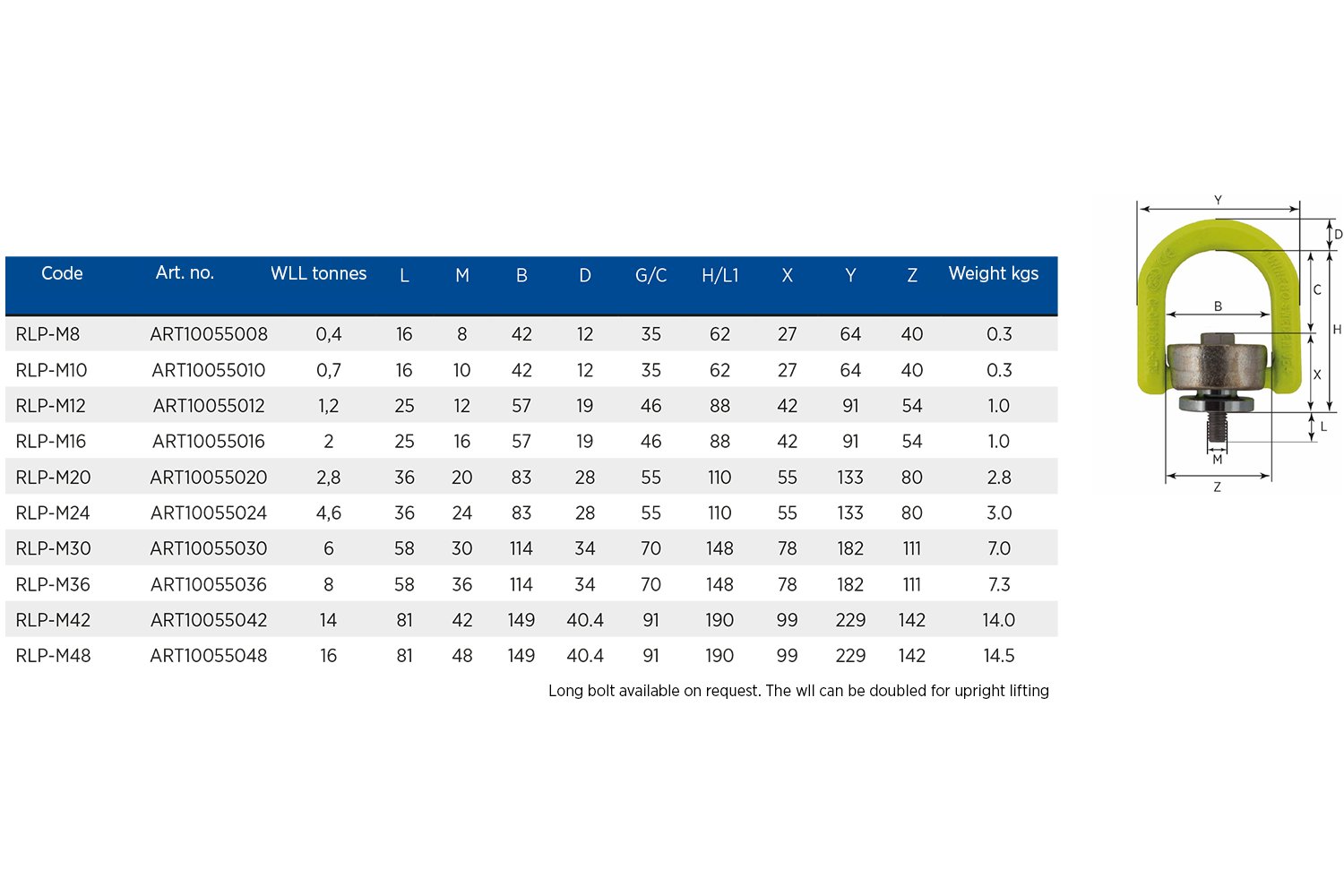

Gunnebo ART10055008
RLP M08-10 v2 x 16mm
Screw thread M8
WLL 0.4 tonne
€ 62,57Excluding 21% VAT
Gunnebo ART10055010
RLP M10-10 v2 x 16mm
Screw thread M10
WLL 0.7 tonne
€ 65,85Excluding 21% VAT
Gunnebo ART10055012
RLP M12-10 v2 x 25mm
Screw thread M12
WLL 1.2 tonnes
€ 73,25Excluding 21% VAT
Gunnebo ART10055016
RLP M16-10 v2 x 25mm
Screw thread M16
WLL 2 tonnes
€ 74,12Excluding 21% VAT
Gunnebo ART10055020
RLP M20-10 v2 x 36mm
Screw thread M20
WLL 2.8 tonnes
€ 111,47Excluding 21% VAT
Gunnebo ART10055024
RLP M24-10 v2 x 36mm
Screw thread M24
WLL 4.6 tonnes
€ 113,7Excluding 21% VAT
Gunnebo ART10055030
RLP M30-10 v2 x 58mm
Screw thread M30
WLL 6 tonnes
€ 277,27Excluding 21% VAT
Gunnebo ART10055036
RLP M36-10 v2 x 58mm
Screw thread M36
WLL 8 tonnes
€ 285,95Excluding 21% VAT
Gunnebo ART10055042
RLP M42-10 v2 x 81mm
Screw thread M42
WLL 14 tonnes
€ 551,54Excluding 21% VAT
Gunnebo ART10055048
RLP M48-10 v2 x 81mm
Screw thread M48
WLL 16 tonnes
€ 566,78Excluding 21% VAT
