Ball-bearing lifting point BLP

Choosing the right lifting point can be a headache since most lifting points are multi-purpose.
Gunnebo BLP lifting points stand out for their freedom of movement.

The BLP is equipped with a ball bearing that facilitates load rotation during lifting activities.
It’s perfect for situations that require maintenance on heavy loads.

What’s more, it ensures that safety comes first! For example, every BLP lifting point is individually tested (MPI) at 2-1/2 times the Working Load Limit.

BLP lifting point-friendly applications:
  • Ball-bearing lifting point

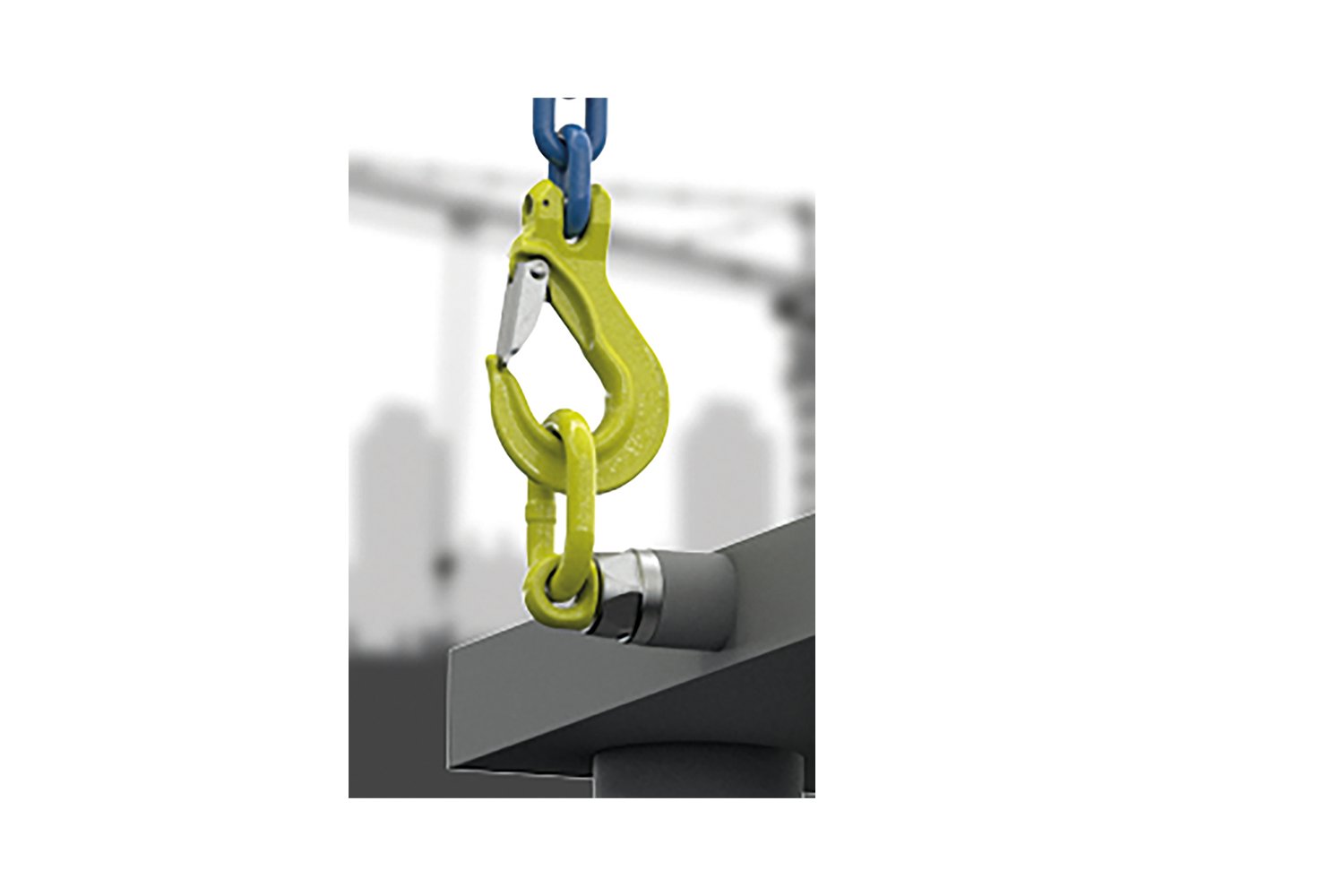

    The BLP is a ball-bearing swivel that always performs to expectation under load.

  • Tight spaces

    The BLP lifting point is designed to take up hardly any space and to prevent contact between the load and the external anchor. For example, relevant situations could include engine or gearbox assembly lines.

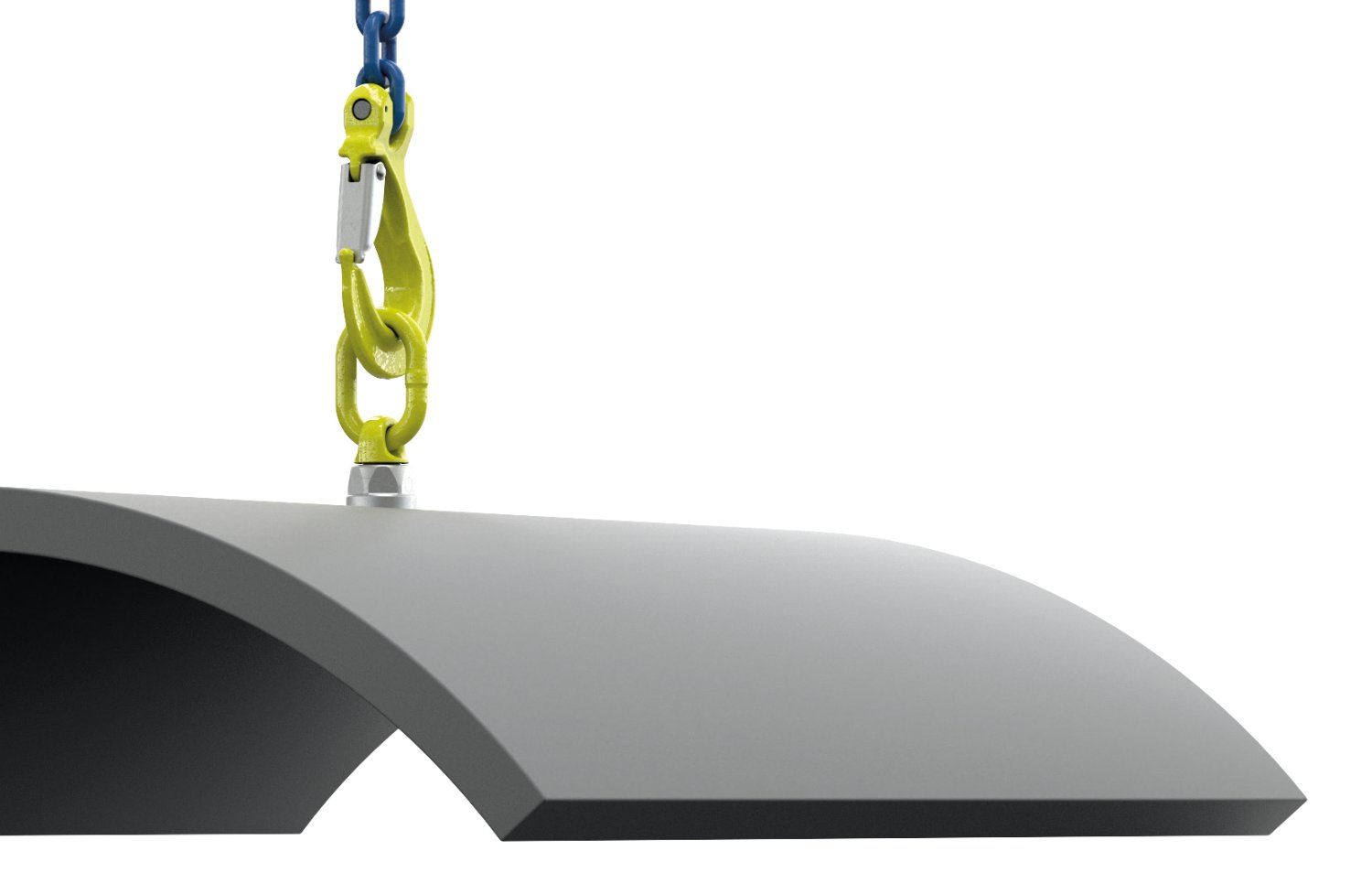

  • Manoevering heavy loads

    In situations where heavy loads need to be rotated or tilted, the BLP is the best choice. Whether using press tools or performing casting operations – you can rely on the BLP.

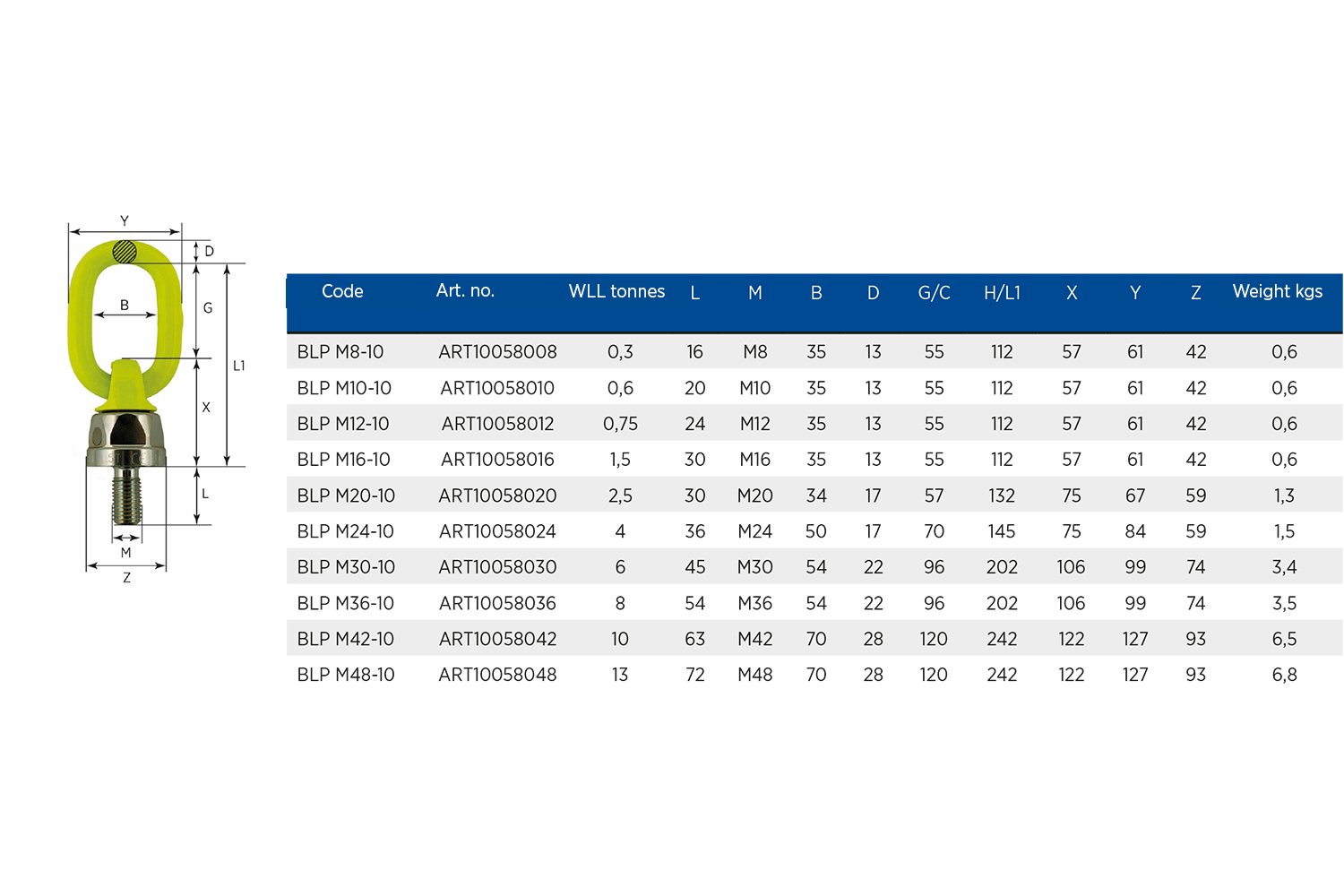

ART10056008
BLP M8-10 x 16mm ball-bearing lifting point
Screw thread M8
WLL 0.25 tonne
€ 90,62Excluding 21% VAT
ART10056010
BLP M10-10 x 20mm ball-bearing lifting point
Screw thread M10
WLL 0.5 tonne
€ 96,28Excluding 21% VAT
ART10056012
BLP M12-10 x 24mm ball-bearing lifting point
Screw thread M12
WLL 0.75 tonne
€ 107,60Excluding 21% VAT
ART10056016
BLP M16-10 x 30mm ball-bearing lifting point
Screw thread M16
WLL 1.5 tonnes
€ 118,94Excluding 21% VAT
ART10056020
BLP M20-10 x 30mm ball-bearing lifting point
Screw thread M20
WLL 2.5 tonnes
€ 138,16Excluding 21% VAT
ART10056024
BLP M24-10 x 36mm ball-bearing lifting point
Screw thread M24
WLL 4 tonnes
€ 163,45Excluding 21% VAT
ART10056030
BLP M30-10 x 45mm ball-bearing lifting point
Screw thread M30
WLL 6 tonnes
€ 370,36Excluding 21% VAT
ART10056036
BLP M36-10 x 54mm ball-bearing lifting point
Screw thread M36
WLL 8 tonnes
€ 381,66Excluding 21% VAT
ART10056042
BLP M42-10 x 63mm ball-bearing lifting point
Screw thread M42
WLL 10 tonnes
€ 771,97Excluding 21% VAT
ART10056048
BLP M48-10 x 72mm ball-bearing lifting point
Screw thread M48
WLL 13 tonnes
€ 804,8Excluding 21% VAT
