Lifting clamp 3 IPU10 0-40mm

Description

With the IPU10 (tilting lifting eye) vertical lifting clamp, steel plates etc. can be lifted vertically. The load can be brought into horizontal and vertical position, and then switched back. The tilting eye (180°) ensures that these clamps can be combined with more bony chain assemblies.

Characteristics

• Jaw opening: 0-40 mm
• WLL: 3 tonnes

Notes

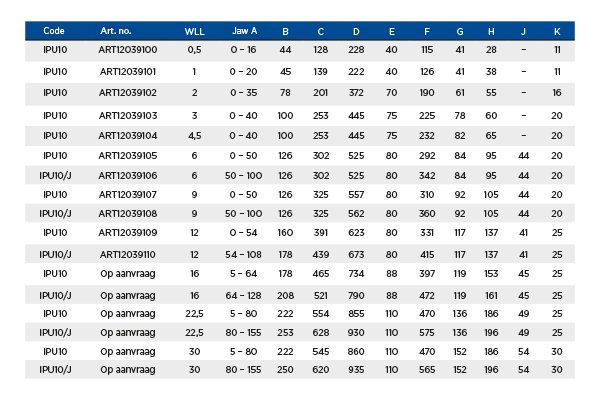

• Capacity from 0.5 to 30 tonnes.
• Openings available from 0 to 155 mm.
• Test loaded at 2x the working load including certificate.
• With the lever one can open or close the lock.
• IPU10: standard version.
• IPU10J: larger clamp opening.
• IPU10S: for use with stainless material.
• IPU10H: for material with a surface hardness of maximum 472HV10 (450 HB).
