Lifting clamp 0,5 IP10 0-16 mm

Crosby ART12039000
On demand Has been inspected
Inspection by anexternal technicalinspection service according to Belgian legislation.
From€ 294,37
From 2 units at ? 264.93/unit From 5 units at ? 250.21/unit From 10 units at ? 235.50/unit
(Excl. 21% VAT and excl. Transport costs)
Jaw opening
0-16 mm
0.5 tonne
Other variant
Jaw opening WLL

With the IP10 lifting clamp (fixed lifting eye), steel plates etc. can be lifted vertically.

  • Jaw opening: 0-16 mm
  • WLL: 0.5 tonne

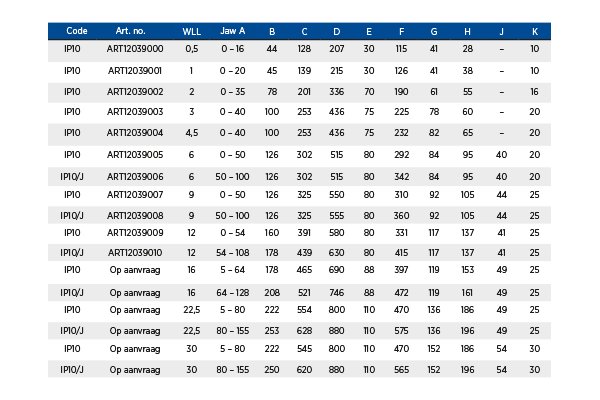

  • Capacity from 0.5 to 30 tonnes.
  • Openings available from 0 to 155 mm.
  • Test loaded at 2x the working load including certificate.
  • With the lever one can open or close the lock.
  • IP10: standard version.
  • IP10J: larger clamp opening.
  • IP10S: for use with stainless material.
  • IP10H: for material with a surface hardness of maximum 472HV10 (450 HB).
