IPH10

Horizontal lifting clamps 2 IPH10 (pair)

Horizontal lifting clamps 2 IPH10 (pair)Horizontal lifting clamps 2 IPH10 (pair)
Crosby ART12037302
+32 11 45 01 45 Advice/Quote
On demand Has been inspected
Inspection by an external technical inspection service according to Belgian legislation.
From€ 1249,83
From 2 units at ? 1,124.85/unit From 5 units at ? 1,062.36/unit From 10 units at ? 999.86/unit
(Excluding 21% VAT)
Jaw opening
0-60 mm
WLL
2 tonnes
Vraag aan
Other variant
Jaw opening WLL
Description

The IPH10 horizontal lifting clamp ensures safe and easy load handling. Ideal for horizontal lifting of sheets that do not deflect. The clamp is equipped with magnets The clamp is equipped with magnets which ensure a better support of the clamp on the sheet. The IPH10 is always used in pairs.

Characteristics
  • Jaw opening: 0-60 mm
  • WLL: 2 tonnes
Notes

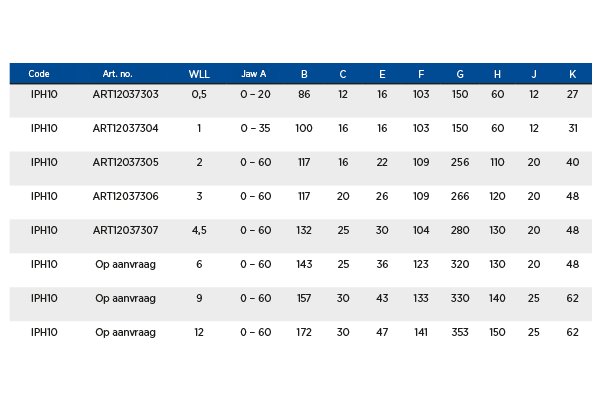

  • Capacity from 0.5 to 12 tonnes.
  • Openings available from 0 to 120 mm.
  • Test loaded at 2x the working load including certificate.
  • With spring load.
  • IPHNM10: For use with material that must not be damaged.
